Greetings to the readers of my blog. Today, I want to share with you an intriguing set from NEOECO, which can be used for painting scale models, nails, and pretty much anything within reason.

The set arrives in a sleek black box, and everything inside is securely packaged.

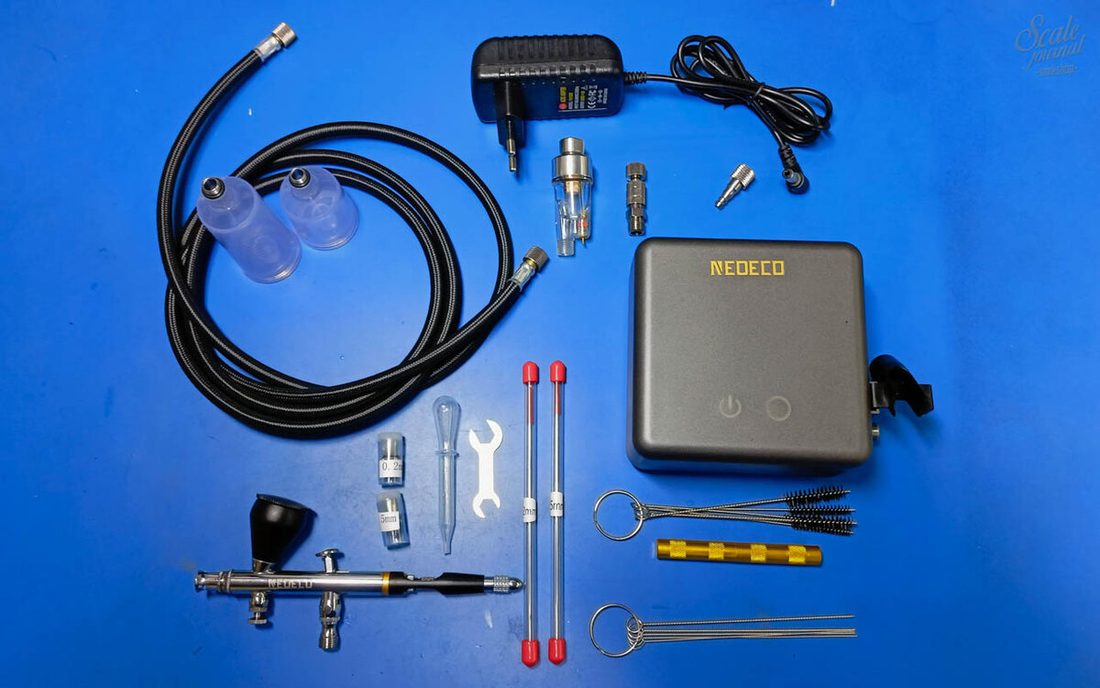

The contents of the kit after unpacking are as follows:

Neoeco Airbrush with compressor, plastic cups,needles, nozzles, air hose, cleaning kit and so on.

The kit includes:

  • Compact compressor
  • Power adapter
  • Dual-action airbrush with a 0.3mm nozzle
  • 8m hose
  • Moisture filter separator
  • Quick-release coupling
  • Adapter for hose without threaded connection
  • Pipette
  • Wrench
  • Two interchangeable paint cups (20ml and 40ml)
  • Two sets of replacement needle/nozzle/diffuser (0.2mm and 0.5mm)
  • Two sets of cleaning brushes
  • Needle for nozzle cleaning
  • Airbrush holder"


Links to the manufacturer

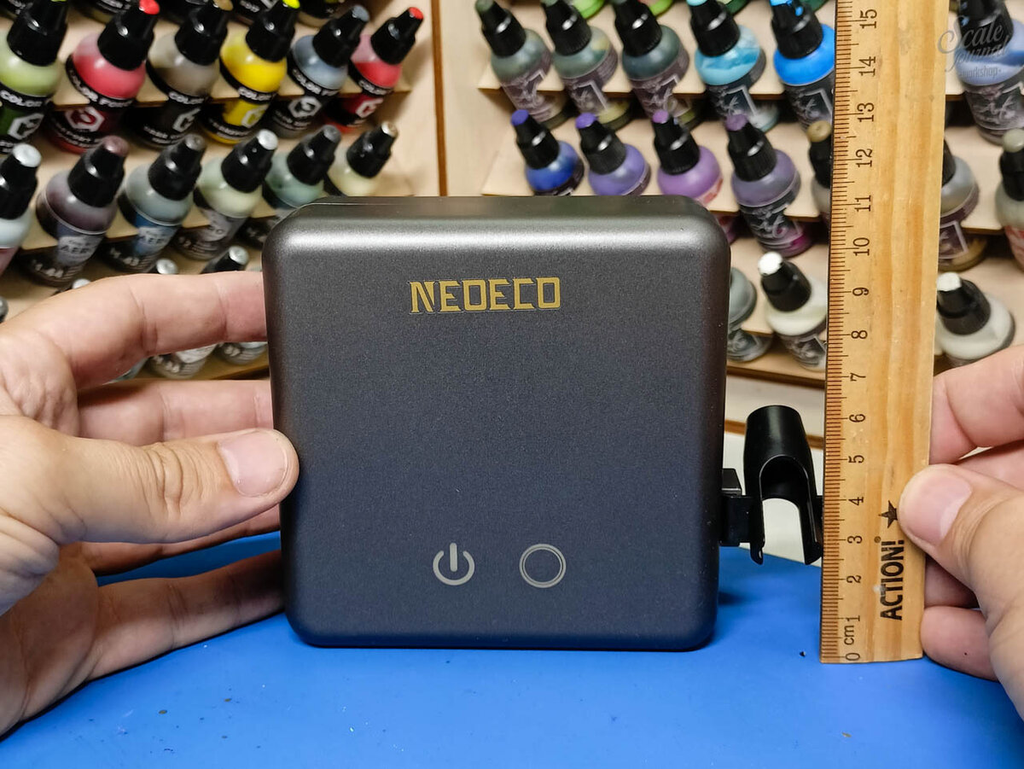

Compact, lightweight device with rubberized feet. It features touch control with two buttons. The left button is responsible for turning it on and off, while the right one is used to switch between modes.

30psi mini grey compact compressor desk version compressor quiet

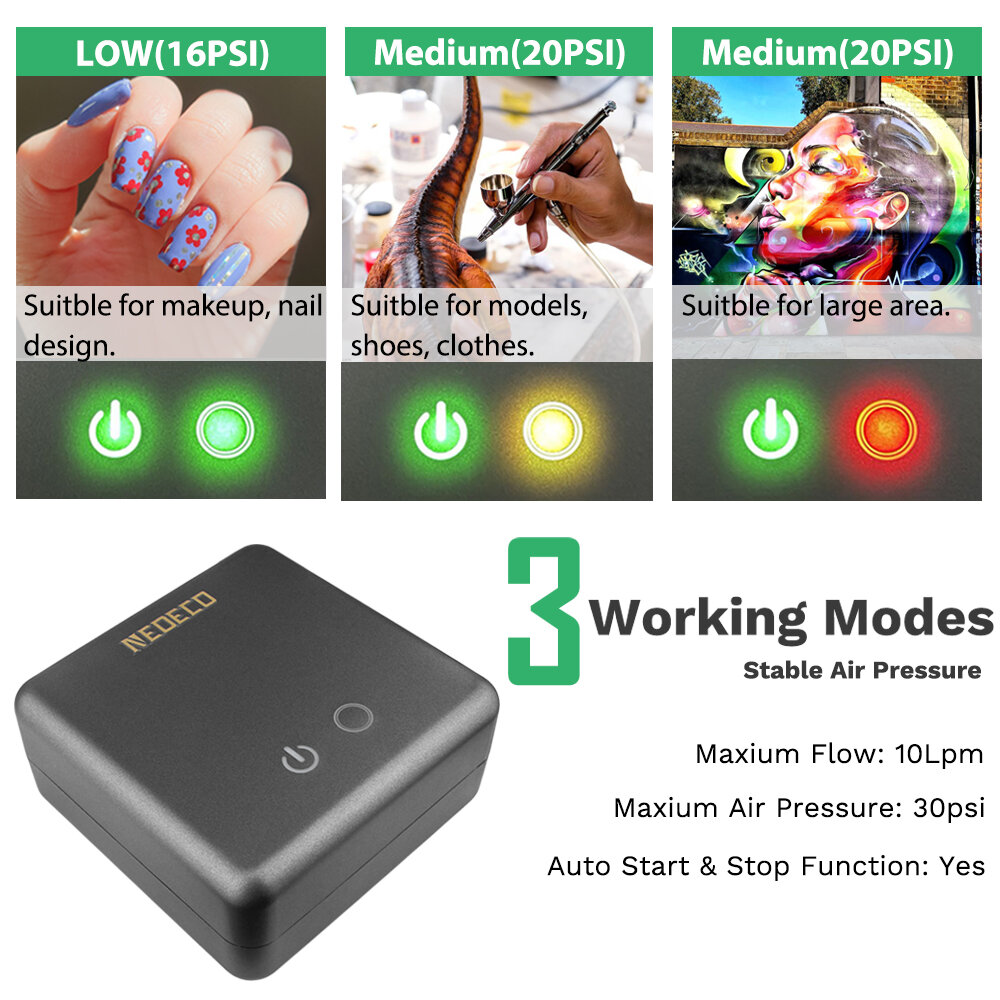

There are three operating modes for the compressor – 16 psi, 20 psi, and 28 psi, which roughly equate to 1.08 atm, 1.36 atm, and 1.9 atm, respectively.

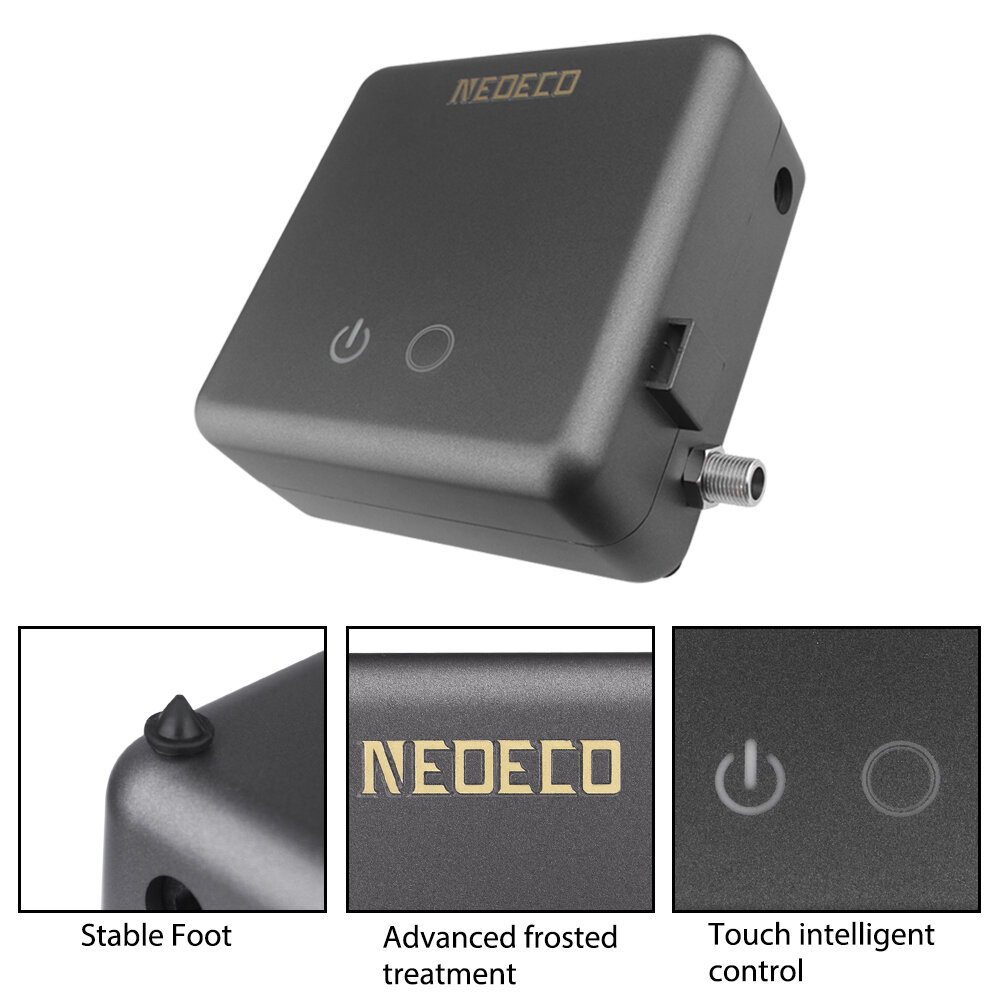

Neoeco mini compressor 3 modes for switching air source with low noise quiet

3 modes switch air brush mini compressor for airbrush using

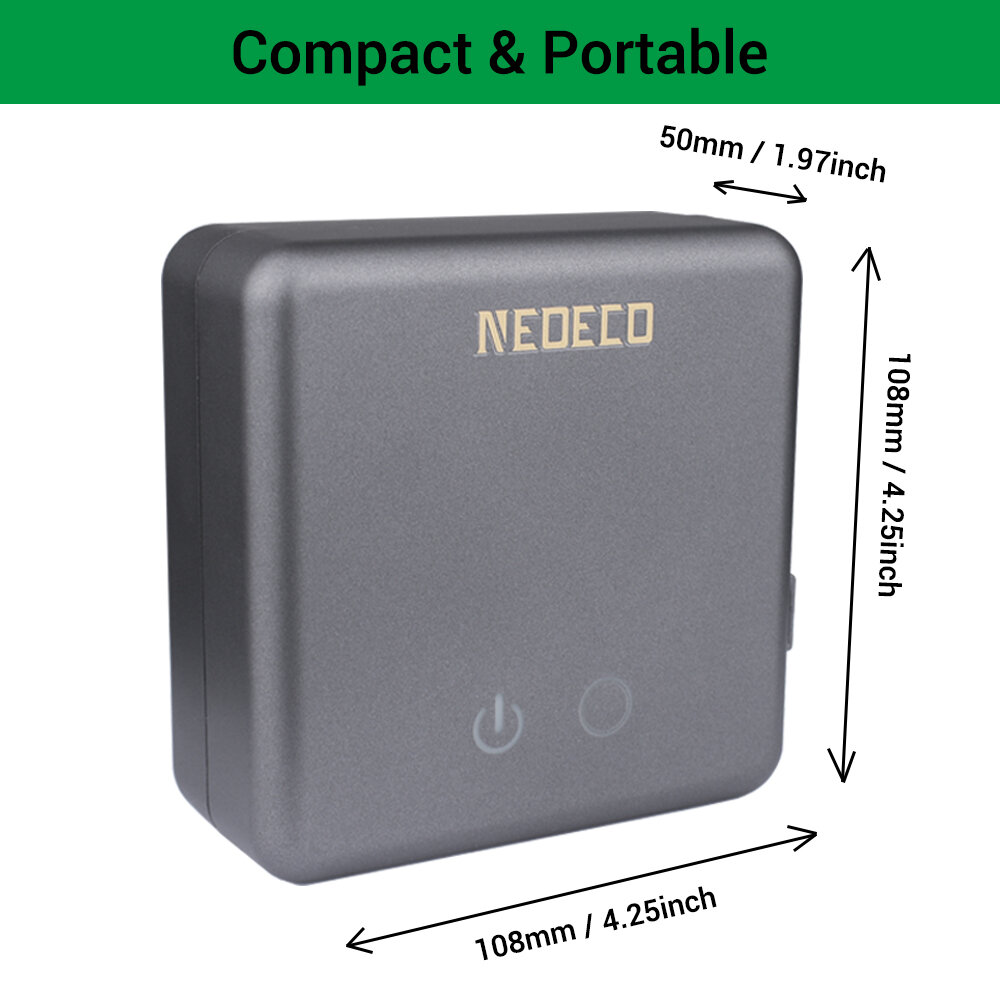

Neoeco mini compressor compact square shape with 4 rubber foots

Subjectively, you can feel the difference in the output pressure, but there's no way to measure the actual airflow. I tried spraying Pacific88 P-13 Black primer with no issues on all three modes.

On the right side, there's an optional airbrush holder. It does its job well, providing a convenient place to keep the airbrush during work breaks.

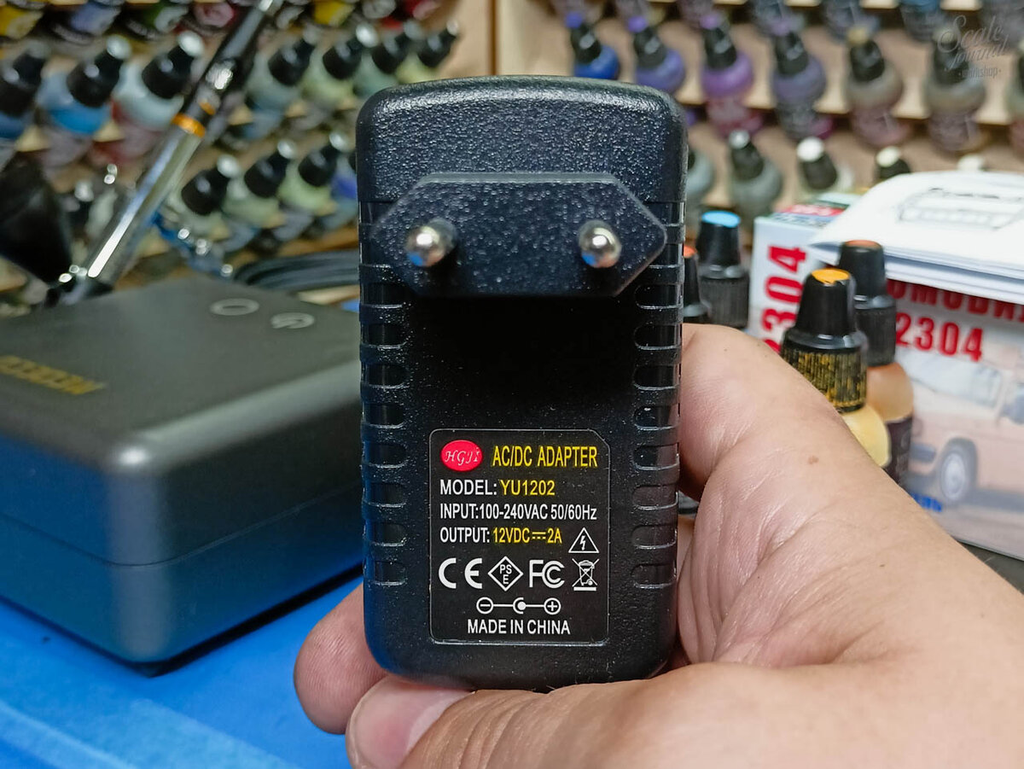

The power adapter supplies 12 volts at 2 amps.

Neoeco airbrush compressor adapter EU plug 12VDC2A 100-240V Input

Note: The adapters vary based on the shipping address, including US, UK, EU, and AU plugs, which Neoeco will provide accordingly.



It's a classic dual-action airbrush, but with its own unique features.

Airbrushes are divided into single-action and dual-action airbrushes. 'Single-action' means that the trigger controls only one thing – either the airflow or the material flow. With dual-action airbrushes, the trigger controls both the air valve and the material flow. By moving the trigger back and forth, the needle opens and closes the hole in the nozzle, regulating the paint flow.

Neoeco NCT-SJ83 Airbrush with plug in auto centering huge nozzle

The standard paint cup has a capacity of 9ml, and it comes with a lid. It's made of a lightweight alloy material, which feels somewhere between aluminum and plastic. The tailpiece is also made from a similar material.

Neoeco NCT-SJ83 Airbrush with drop-in auto-centering huge nozzle black fluid cup

It weighs 89 grams, which is quite light.

As I mentioned earlier, the kit includes an additional 20ml paint cup.

Neoeco NCT-SJ83 airbrush with 20cc big volume plastic cup

And there's also a 40ml paint cup included. With the 0.5mm kit installed, you can paint relatively large surfaces.

 Neoeco NCT-SJ83 Airbrush with 40cc big volume plastic cup

And if you need to paint very small areas, you can remove the paint cup.

Neoeco NCT-SJ83 Airbrush without cup for small area painting

One of the features of the airbrush is the protective cap.

Neoeco SJ83 airbrush quick plug-on nozzle

It's removable but not magnetic like some German models. It simply comes off and snaps back on with minimal effort, a cost-effective and practical solution.

Another distinctive feature is the nozzle of the airbrush. It's non-threaded and self-centering, which simplifies airbrush maintenance. Moreover, it's quite large, making it less likely to be misplaced.

Huge auto centering nozzle with no thread design for easy cleaning and not easy to lost

There's a Teflon gasket under the nozzle, while rubber seals are used in other parts of the assembly.

Neoeco NCT-SJ83 airbrush white teflon o ring seals on the air brush


In summary, we have an excellent kit consisting of an airbrush, compressor, and accessories ready for use right out of the box. When precision work is needed, you can use the 0.2mm needle/nozzle/diffuser set. For covering larger surfaces, the 0.5mm kit and larger paint cups are available. For most tasks, the standard 0.3mm kit is versatile.

Everything is well-made, and I haven't found any noticeable issues. Of course, for extended work, a full-sized compressor is required, but this setup works perfectly for painting medium-scale models (1/35 and smaller) and figurines. It doesn't take up much space on the table and isn't very noisy.

(The original wesite of this blog: Link )
