Gently rotate the airbrush handle in a counterclockwise direction until it becomes detached.

Carefully turn the airbrush needle nut in a counterclockwise direction until it loosens and can be taken out.

To proceed with removing the airbrush needle, carefully extract it from its position, ensuring a gentle and steady grip throughout the process.

Use the adjustable spanner in a counterclockwise motion to loosen and unscrew it carefully.

Detach the gold ring part from its current position.

Disassemble the spring case, carefully separate the individual components by gently pulling them apart, ensuring a controlled and meticulous approach to avoid any damage or misalignment.

To prepare the parts for cleaning, place them adjacent to each other, ensuring they are organized and readily accessible. This will facilitate the cleaning process and help maintain a systematic approach to reassembling the components afterward.

Remove the airbrush lever, gently extract it from its position, ensuring a careful and controlled grasp to avoid any potential damage or misalignment.

Carefully rotate the needle cap in a counterclockwise direction until it becomes loose and can be unscrewed easily, ensuring a gentle and controlled approach to avoid any mishaps.

Unscrew the air cap.

Employ the small wrench by inserting it into the designated area and carefully turning it in a counterclockwise direction.

Remove the fluid cup lid.

Unscrew the fluid cup to remove it.

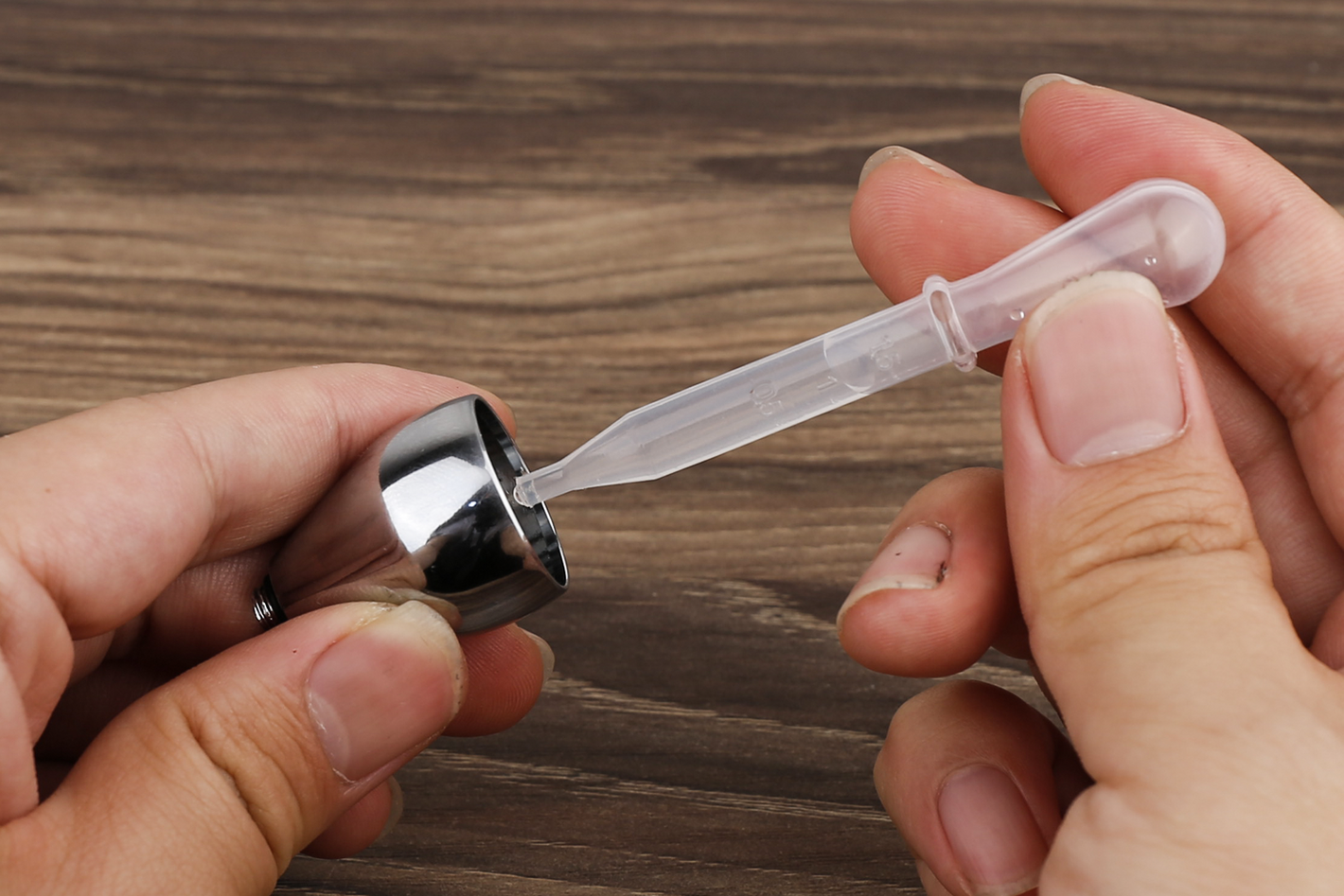

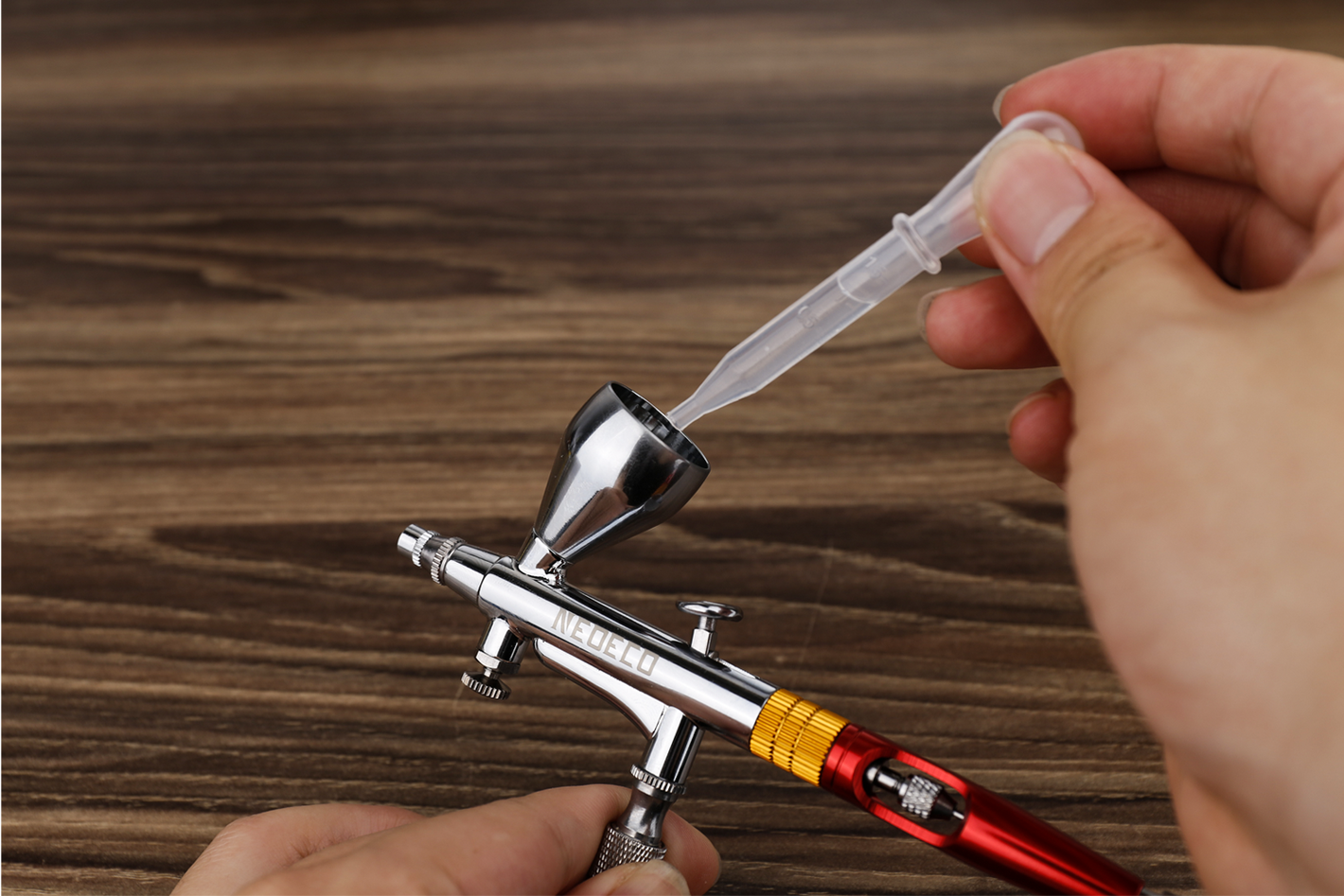

Employ a dropper to carefully dispense a few drops of the cleaning solution into the cup.

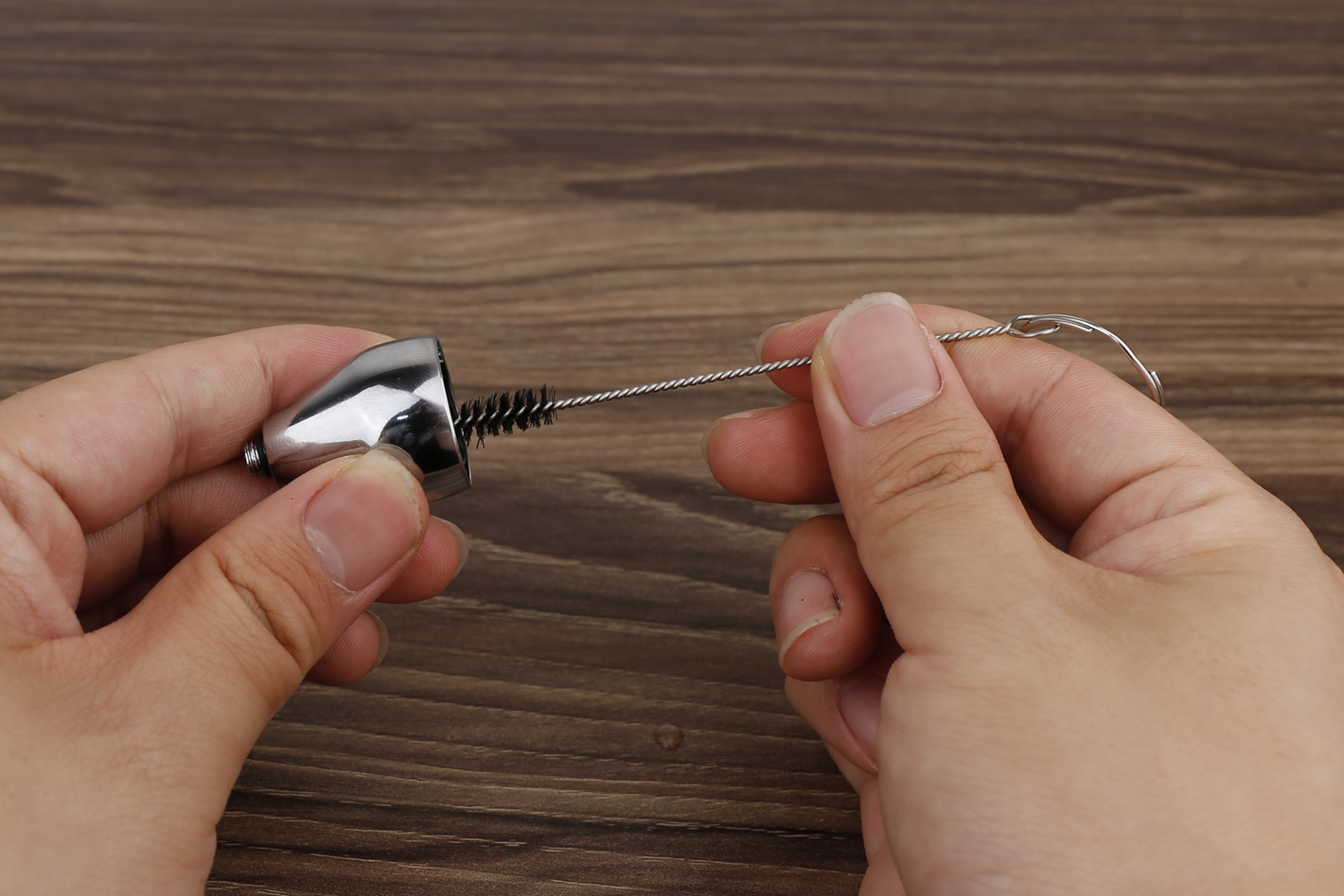

Use an airbrush cleaning brush by gently scrubbing the interior surfaces of the cup.

Apply a small amount of airbrush cleaner to the cup connection holes. Use a dropper or a precise pouring technique to add the cleaner into the holes, ensuring sufficient coverage.

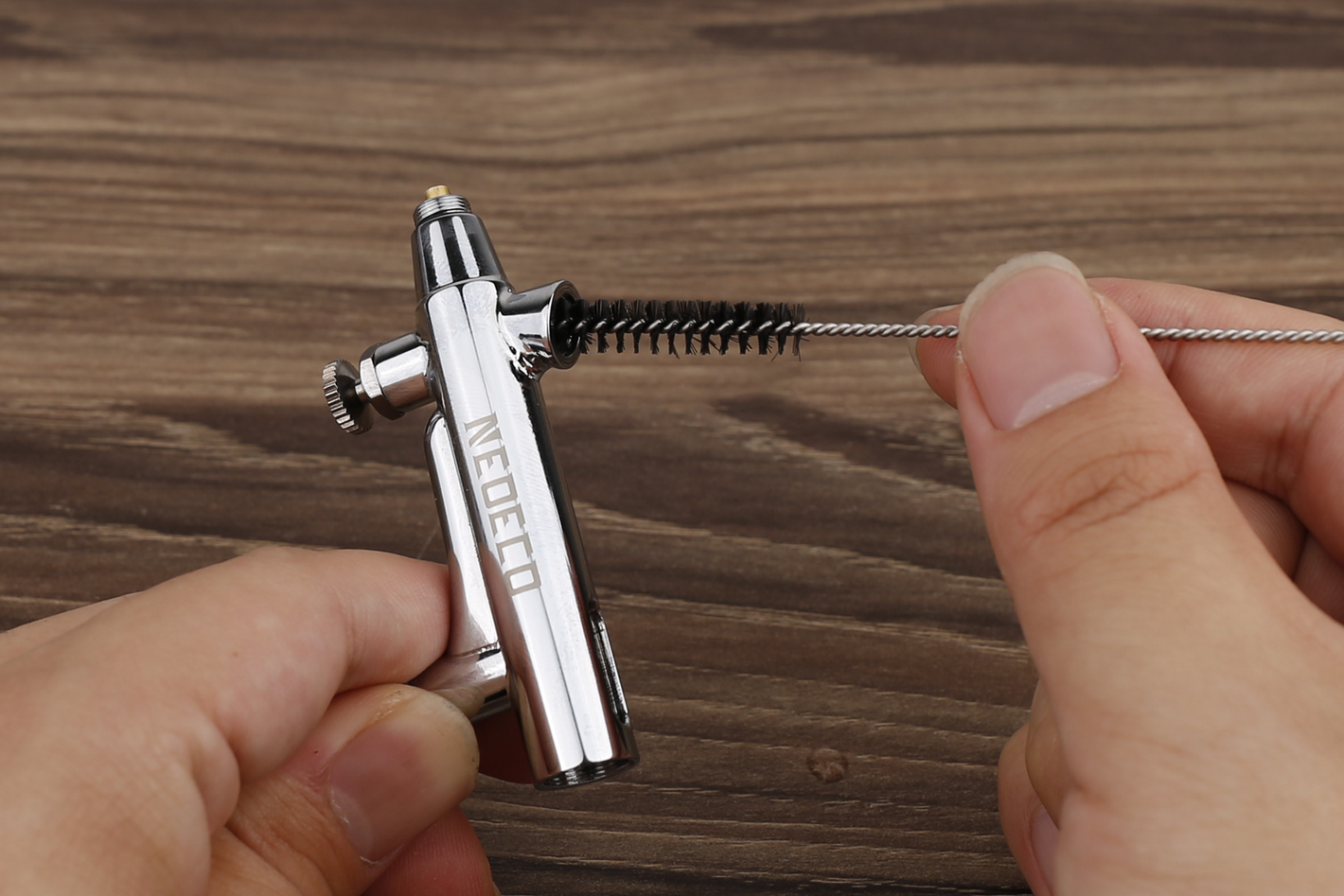

Insert the appropriate size brush into the connection hole and gently scrub the inner surfaces, ensuring to reach all corners and crevices. Employ a back-and-forth or circular motion while cleaning to effectively remove any accumulated debris or residue.

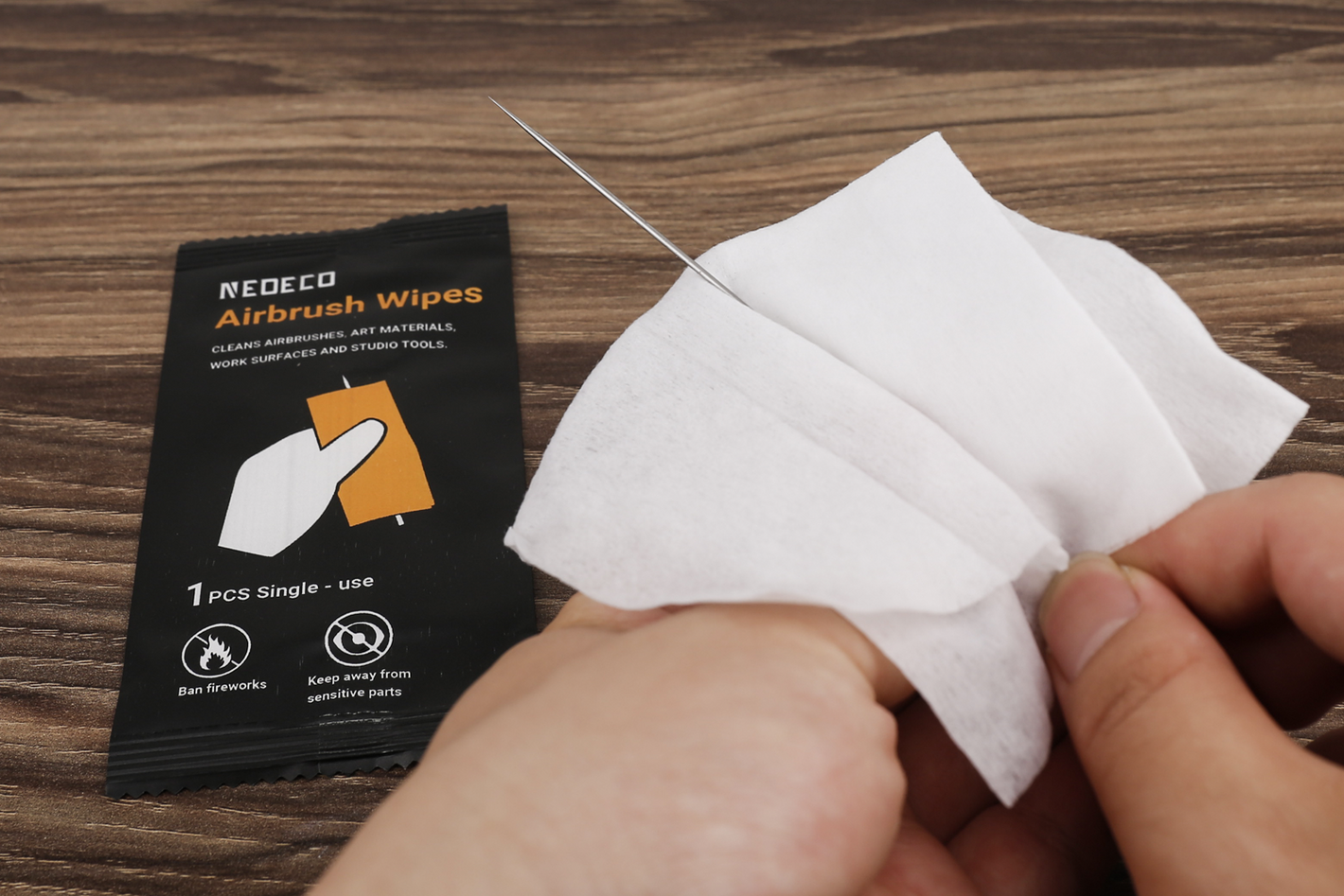

Use NEOECO airbrush wipes or alternatively, use soft tissues to gently wipe the surface of the needle.

Now that you have disassembled the airbrush, proceed with cleaning the components that require attention. Take each part individually and carefully clean them using the appropriate cleaning solution, brushes, or tools recommended for each specific part. Ensure thorough cleaning by removing any residue, paint, or debris that may have accumulated.

Carefully align the nozzle with its designated position and gently screw it in a clockwise direction until it is securely tightened. Ensure a firm connection to prevent any air or paint leakage during operation.

Carefully thread and tighten the airbrush air cap onto the airbrush body in a clockwise direction. Ensure a firm and secure connection by gently rotating the cap until it is snugly screwed onto the airbrush, allowing for proper airflow and control during operation.

Carefully screw the airbrush needle cap onto the airbrush body by turning it in a clockwise direction.

Carefully position the airbrush lever onto its designated spot and align it with the lever slot. Gently push or slide the lever into place until it fits securely and smoothly. Make sure the lever moves freely and is properly seated to ensure smooth operation and control during use.

Take the spring and insert it onto the airbrush needle chucking.

Position the spring case in such a way that the grooves or notches on the case match with the corresponding slots or ridges on the needle chucking.

Place the fully assembled needle chucking components delicately into the airbrush.

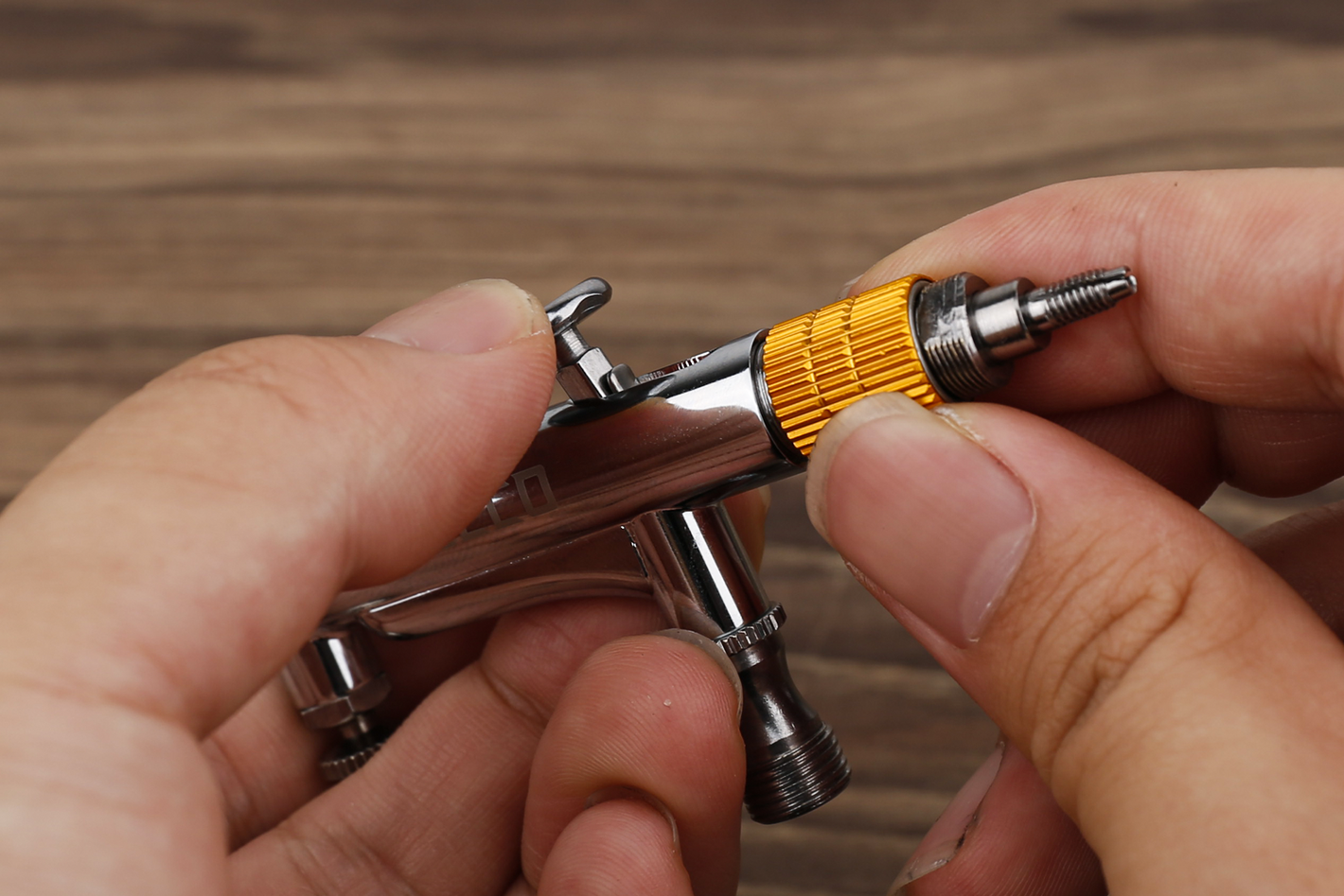

Fasten the gold ring component onto the airbrush by securely screwing it in place.

Gently insert the airbrush needle into its designated slot.

Proceed to screw on and firmly fasten the airbrush needle chucking nut, securing the needle in place.

Twist and tighten the airbrush handle by turning it in a clockwise direction until it is securely screwed in place.

Place the airbrush cup lid onto the cup, ensuring a snug and secure fit.

Screw the airbrush cup onto the airbrush body, tightening it securely to prevent any leakage.

You've cleaned your airbrush! Now, add some water in the color cup and do a test spray to make sure the brush is operating properly.
